Video Multiplexer

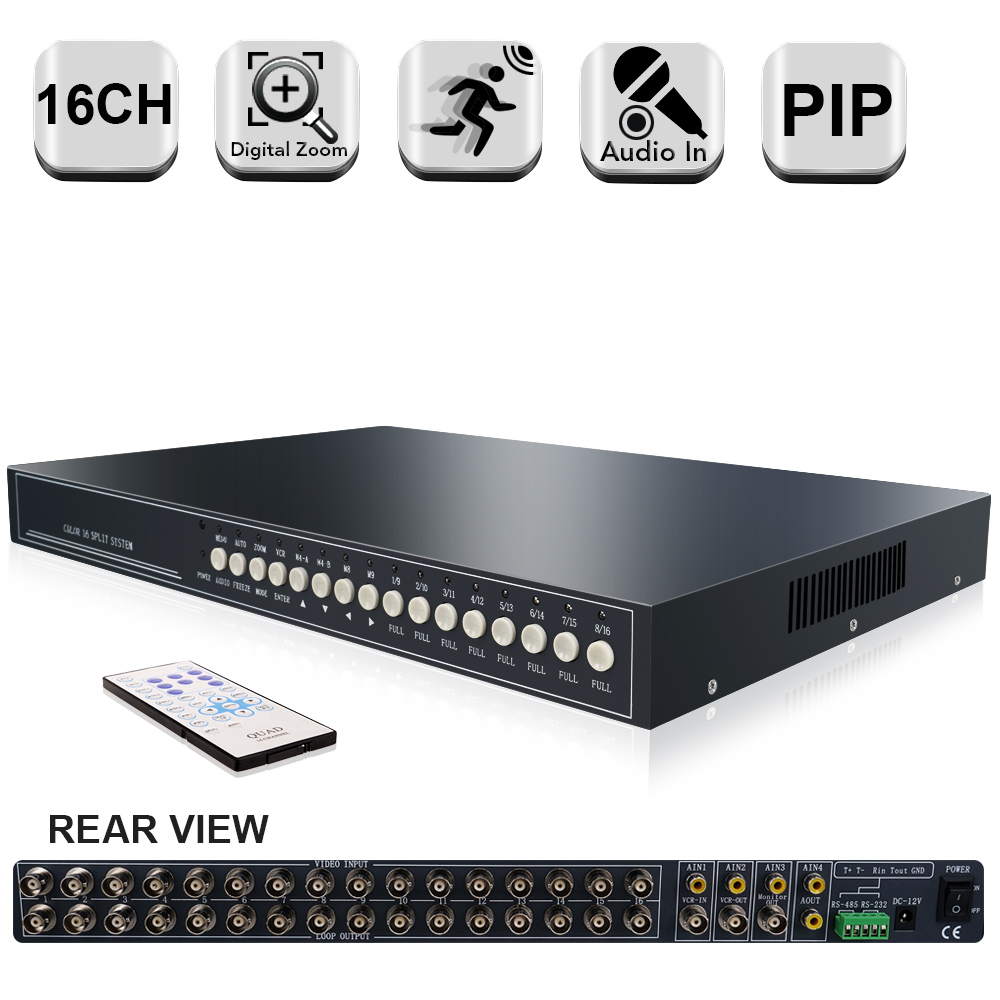

16Ch Video Multiplexer Processor for CCTV Cameras

Product description: 4ch aduio in, 1ch audio out; 2ch video outputs; loop-through; RS485 and RS232 interface; digital zoom in/out; support video freeze; support motion detection; video loss alarm; multiple display modes.
INQUIRY

Key Features:

-Support 16 channel real-time video display, each channel can be renamed.

-4, 8, 9, 16 channels display mode selectable.

-Support 4 channel audio Input, 1 channel audio output and 2 channels video output.

-Support auto sequential video channel switching.

-Support 1 or 2 picture in picture functions, each PIP position is adjustable and video channel can be renamed.

-Support digital zoom in/out, zooming area is selectable.

-Support multiple video channels freezing at the same time.

-Support video loss detection and alarm.

-Support motion detection alarm, detective area and alarm duration are adjustable.

-Support RS485 or RS232 Communication.

-Support loop-through video outputs.

-Support IR Remote Control.

Parameters:

Video System	PAL/NTSC
Video Frame Rate	PAL: 400fps; NTSC: 480fps
Video Resolution	PAL: 720×576; NTSC:720×480
Video Input	16xBNC 1Vp-p,75Ω
Video Input	1xBNC 1Vp-p,75Ω
Video Output	1 channel master monitor output, 1Vp-p,75Ω
Video Output	1 channel slave monitor output, 1Vp-p,75Ω
Audio Input	4xRCA
Audio Output	1xRCA
Control Port	RS485, RS232
Auto Switch Intervals	0~99 Seconds
Event Records	60 groups in max
Alarm Output	None
OSD Language	English/Chinese
Customized Menu	Brightness ,Contrast, Saturation, Hue, Sharpness adjustable
Power Consumption	12W (1000mA)
Power Supply	DC 12V, 2A
Operation Temperature	-10℃~ +60℃
Gross Weight	3.2Kg
Product Size	440mm×275mm×45mm
