Video Multiplexer

8Ch Video Multiplexer Processor for CCTV Cameras Non-Realtime

Product description: support 4ch audio inputs and 1ch audio output; support 2ch video outputs; digital zoom in/out; support video freeze; motion detection; video loss alarm; multiple display modes.
INQUIRY

Key Features:

-Support 8 channel non-realtime video display, each channel can be renamed.

-Support 4 channels audio input, 1 channel audio output and 2 channels video outputs.

-Support 8, 4, 2 channels, single channel or PIP multiple video display mode.

-Auto sequential switching.

-Support digital zoom in/out.

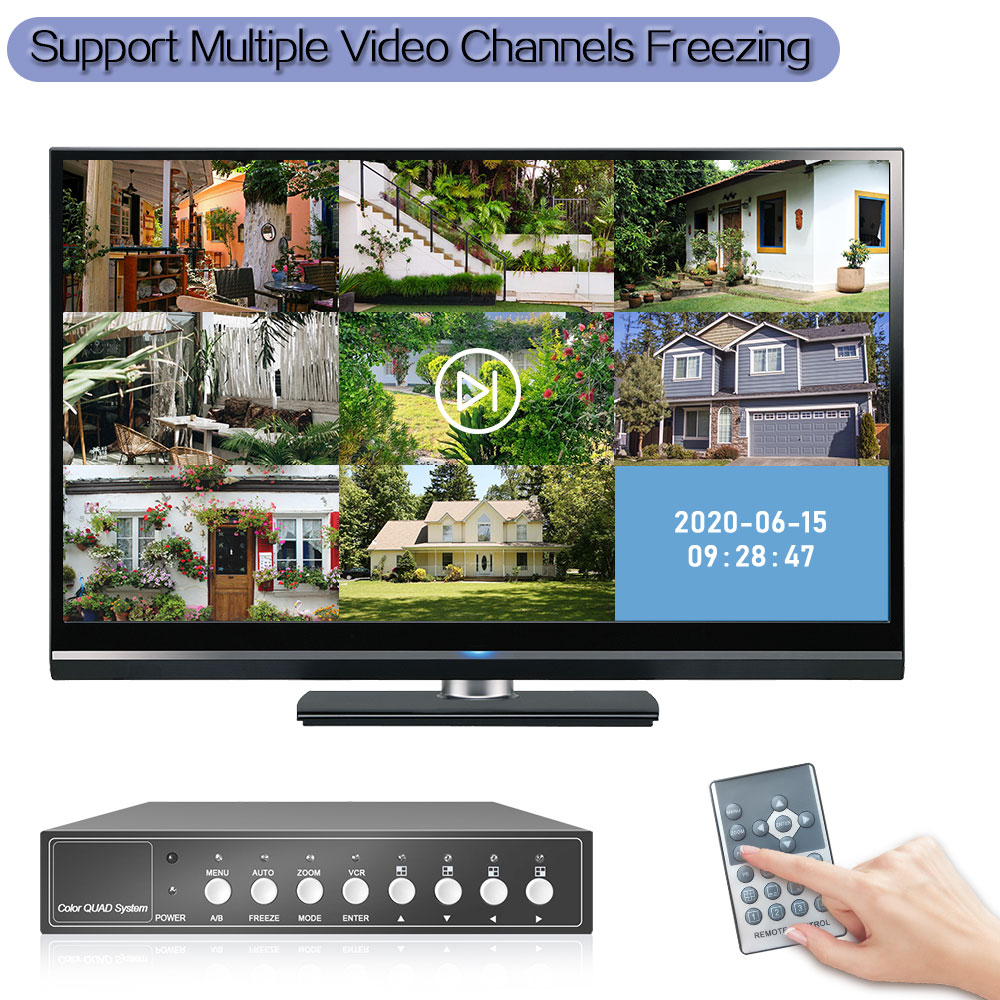

-Support multiple video channels freezing at the same time.

-Support motion detection alarm, detective area and alarm duration are adjustable.

-Support video loss detection and alarm.

-Support IR Remote Control.

Parameters:

Video System	NTSC/PAL
Video Frame Rate	PAL: 150fps; NTSC: 180fps
Video Resolution	PAL: 720×576; NTSC: 720×480
Video input	8xBNC 1Vp-p,75Ω
Video input	1xBNC, 1Vp-p,75Ω
Video output	1 channel main monitor output, 1Vp-p,75Ω
Video output	1 channel slave monitor output, 1Vp-p,75Ω
Auto Switch Intervals	0~99 seconds selectable
Audio Input	4xRCA
Audio Output	1xRCA
Event Records	60 groups in max
Alarm Output	None
OSD Language	English
Customized Menu	Brightness ,Contrast ,Saturation, Hue, Sharpness can be adjustable
Power Consumption	5W (400mA)
Power Supply	DC 12V, 1A
Operation Environment	-10℃~ +60℃
Gross Weight	1kg
Product Size	210mm×130mm×40mm
