Video Multiplexer

4Ch Video Quad Processor for CCTV Cameras

Product description: multiple display modes; digital zoom in/out; support multiple video freeze; motion detection; video loss alarm.
INQUIRY

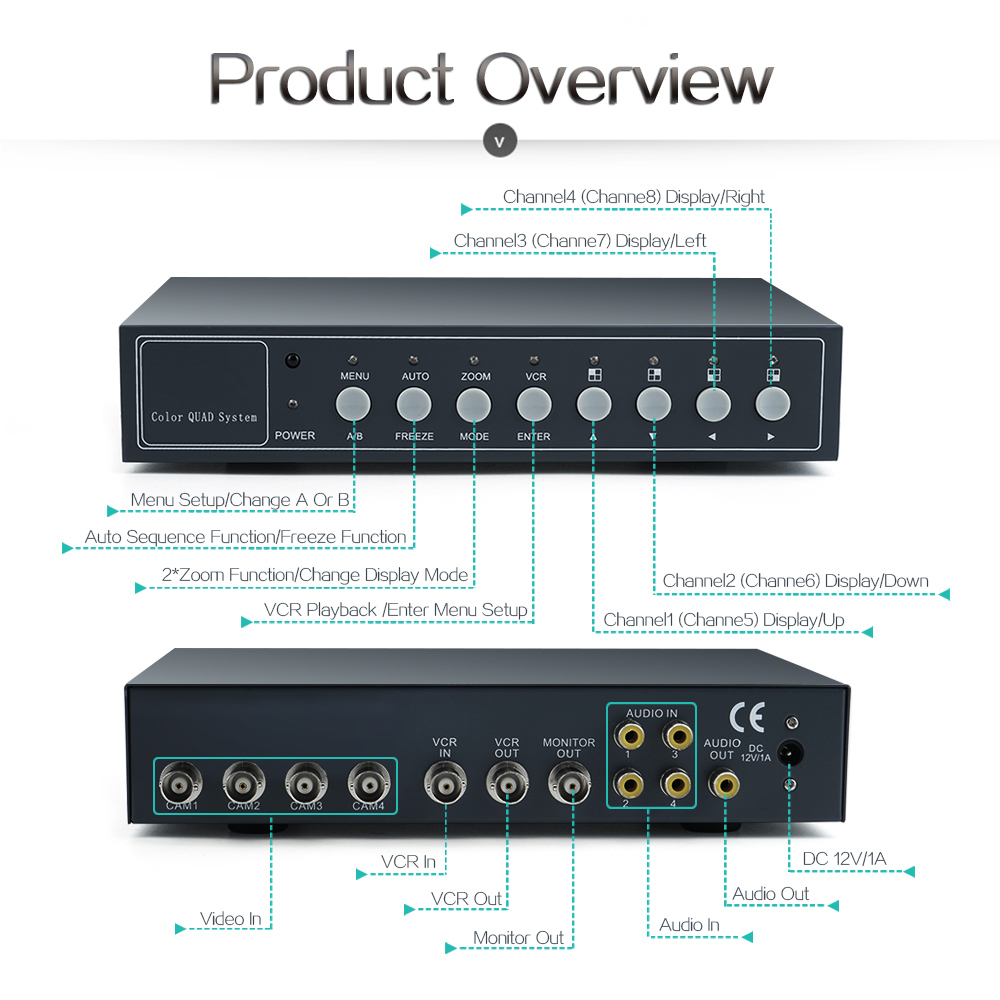

Key Features:

-Support 4 channels real-time video display, each channel can be renamed.

-Support 4 channels audio input, 1 channel audio output and 2 channels video output.

-Support auto sequential switching.

-Support 1, 2, 3, 4 channels or PIP (Picture-in-Picture) multiple video display modes.

-Each PIP position is adjustable.

-Support digital zoom in/out, zooming area is selectable.

-Support multiple video channels freezing at the same time.

-Support motion detection alarm, detective area and alarm duration are adjustable.

-Support video loss detection and alarm.

-Support IR Remote Control.

Parameters:

Video System	NTSC/PAL
Video Resolution	PAL: 720×576; NTSC: 720×480
Video Frame Rate	PAL: 100fps, NTSC:120fps
Video Input	4xBNC 1Vp-p,75Ω
Video Output	1 channel main monitor output, 1Vp-p,75Ω
Video Output	1 channel slave monitor output, 1Vp-p,75Ω
Audio Input	4xRCA
Audio Output	1xRCA
Auto Switch Intervals	0~99 seconds selectable
Event Record	60 groups in max
Alarm Output	None
OSD Language	English
Customized Menu	Brightness ,Contrast, Saturation, Hue, Sharpness can be adjustable
Power Consumption	4.5W (350mA)
Power Supply	DC 12V, 1A
Operation Temperature	-10℃~ +60℃
Gross Weight	1kg
Product Size	210mm×130mm×40mm
